Trough conveyor
.jpg)

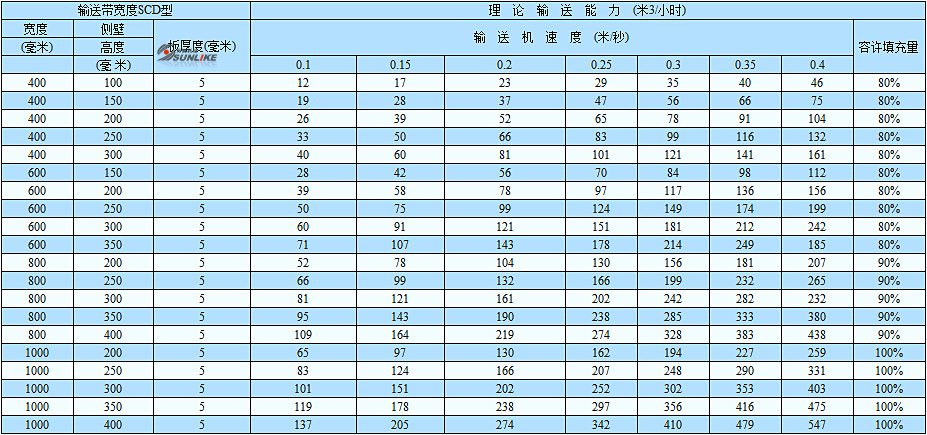

Technical Parameters
.jpg)
SCD two-tank clinker conveyor airborne level when transit (25 ° obliquity acuities throughput (units) rated m3 / h) :
|
model
|
Transportation speed （m3/h）
|
|||
|
0.15
|
0.2
|
0.25
|
0.3
|
|
|
SCD630
|
75
|
100
|
125
|
151
|
|
SCD800
|
96
|
128
|
160
|
192
|
|
SCD1000
|
120
|
160
|
200
|
240
|
SCD two-tank clinker conveyor in conveying (tilt Angle > 25 °) transmission capacity adjustment coefficient K
|
Tilt Angle
|
30º
|
35º
|
40º
|
45º
|
50º
|
55º
|
60º
|
|
Adjustment coefficient
K
|
0.95
|
0.91
|
1085
|
0.80
|
0.73
|
0.67
|
0.59
|
SCD two-tank clinker conveyor chain technical parameters
|
Pitch P
|
Inside wide b1
|
Coat diameter D
|
Pin shaft diameter
d
|
Fixed pitch A*B
|
Fixed aperture
d1
|
Chain plate height
H
|
Chain plate height
L
|
The wideb2
|
Chain plate thicknessS
|
The chain lengthn*p
|
|
250
|
60
|
60
|
44
|
80*100
|
14
|
110
|
167
|
160
|
20
|
8*250
|
